We now have a moden microservices application hosted on AWS, but is it secure? The number of reported vulnerabilities is growing every year and examples like log4shell have shown us how severe they can be and how hard it is to quickly identify and resolve them.

As we have seen in the previous labs, Dynatrace helps you detect problems proactively and this also applies to security. Dynatrace Application Security detects third-party vulnerabilities at runtime, providing you with a continuous assessment of your deployed applications.

Objectives of this Lab

🔷 Enable Dynatrace Application Security to find potential vulnerabilities our application

🔷 Become familiar with the user interface by reviewing some of the identified vulnerabilities

🔷 See how Davis Security Score helps us prioritize vulnerabilities

Application Security is an integral part of the Dynatrace platform, and it uses the same core technologies as all other Dynatrace products. This includes OneAgent, Smartscape, PurePath, and DAVIS. This not only makes configuration quick and easy, but also means that observability is used to enrich vulnerability data as well as provide accurate insight into your runtime applications. The only action required is toggling a switch in the user interface.

To demonstrate this, we will enable Application Security in our environment by following the below. Once this is completed, we will explore the product and analyze some vulnerabilities.

Tasks to complete this step

1. Enable runtime Vulnerability detection
   1. Navigate to the relevant settings page
      1. Click on Third Party Vulnerabilities in the Application Security section of the menu

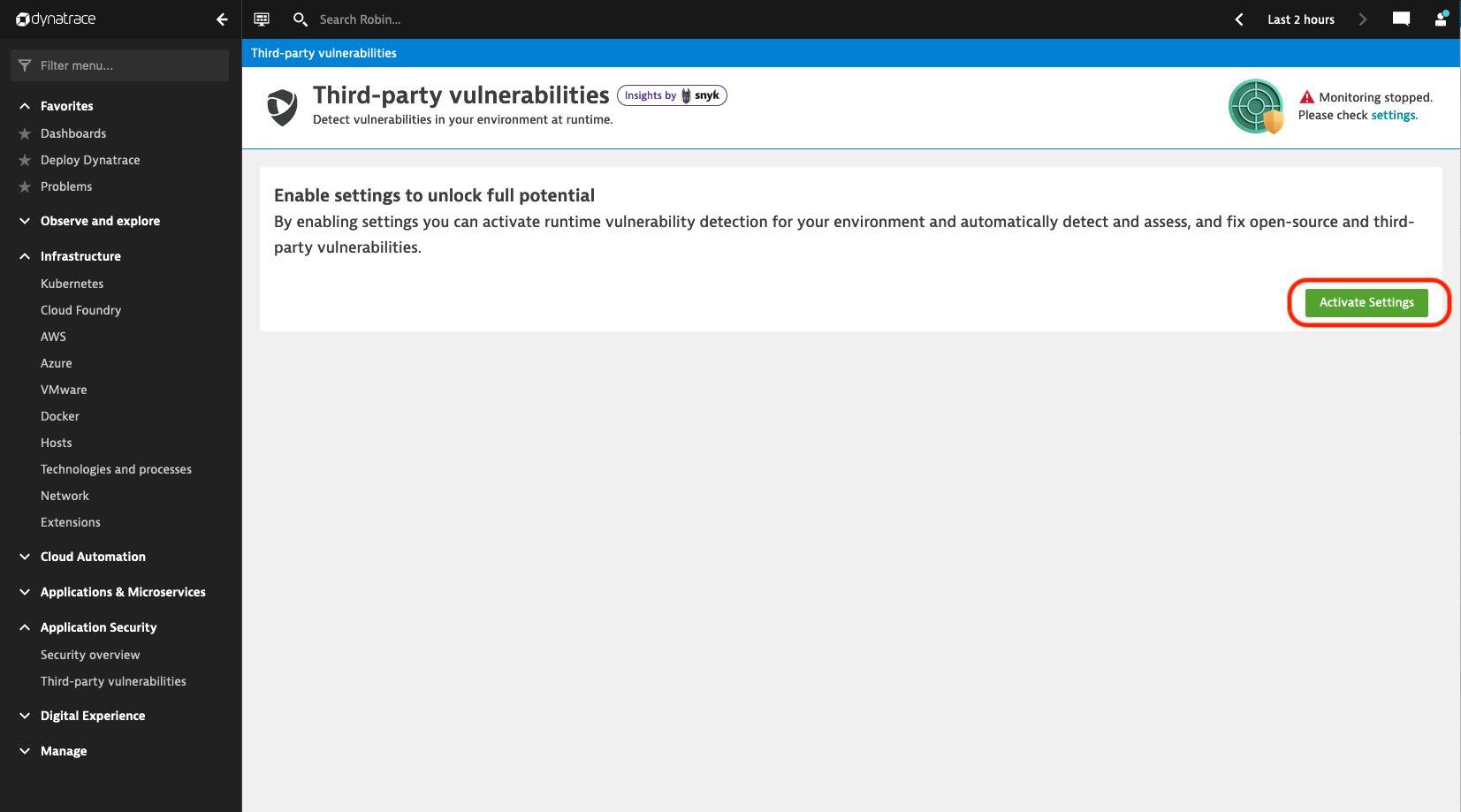

      2. Click on Activate Settings

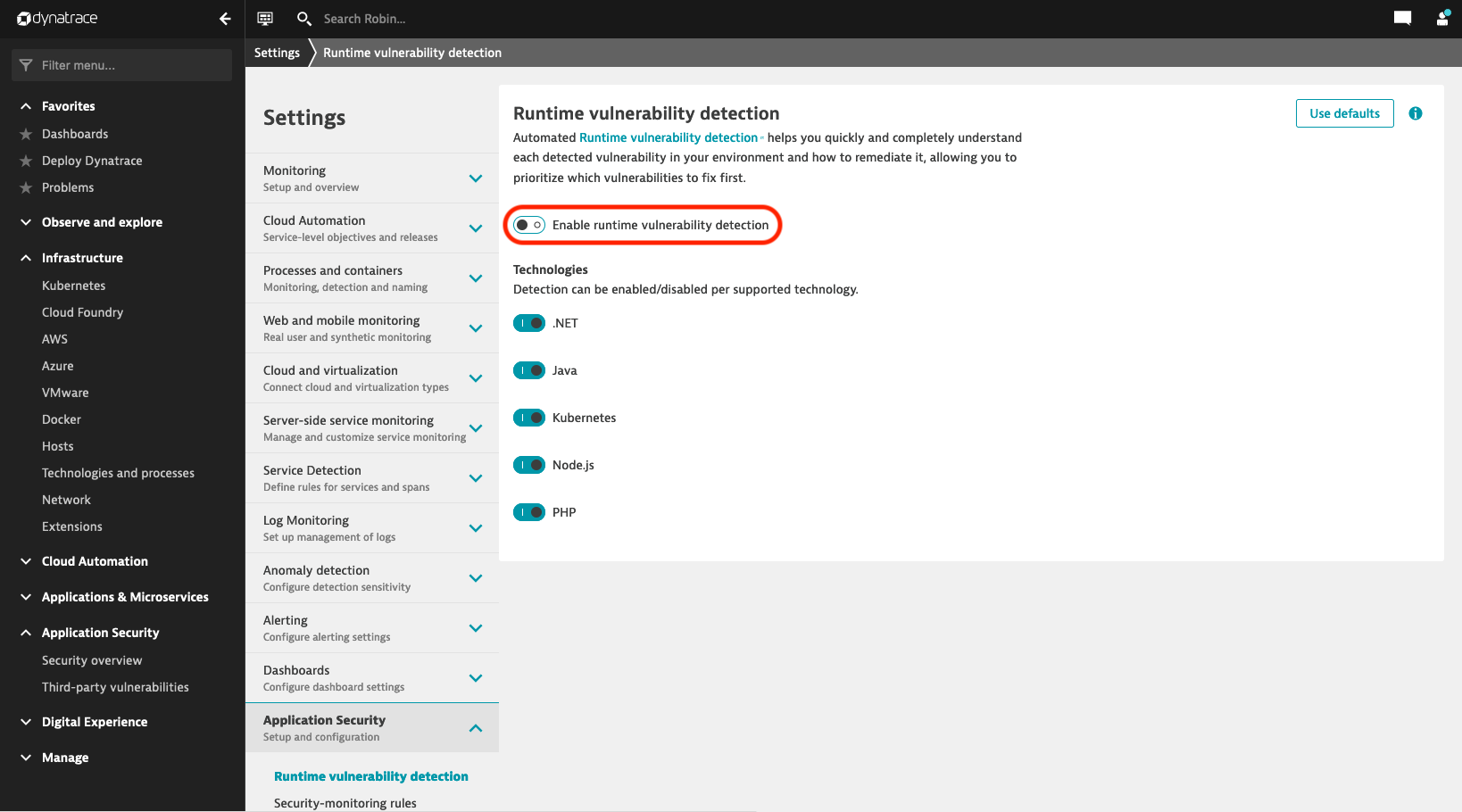

   2. Toggle Enable runtime vulnerability detection



Now that Application Security is enabled, lets explore the product and analyze some vulnerabilities.

Vulnerabilities

On this screen you can see a list of all vulnerabilities that were discovered in the environment.

The list is sorted by the Davis Security Score, which is based on the CVSS, but also factors in context information detected at runtime. This contextual information, shown as icons next to the Davis Security Score, indicates whether there is public exposure, sensitive data in range, presence of vulnerable functions, and availability of a public exploit.

Tasks to complete this step

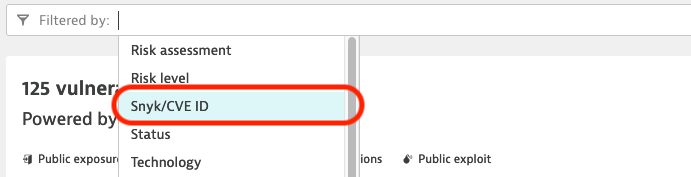

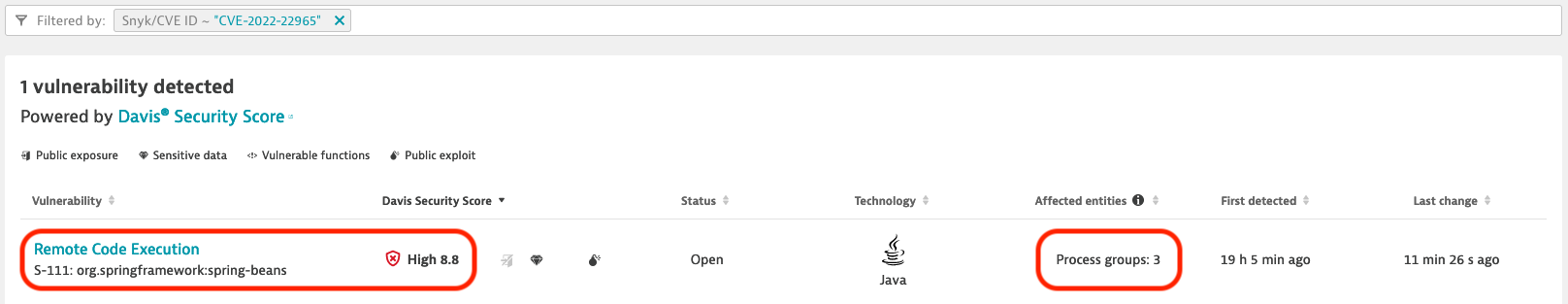

1. Click on the Filter by field, select Snyk/CVE ID and enter CVE-2022-22965.
   As you can the vulnerability was detected in your environment, with a Davis Security Score of 8.8 out of 10. It also shows you that there are 3 process groups that are affected.
2. Now, click on Remote Code Execution to show further details about this vulnerability.

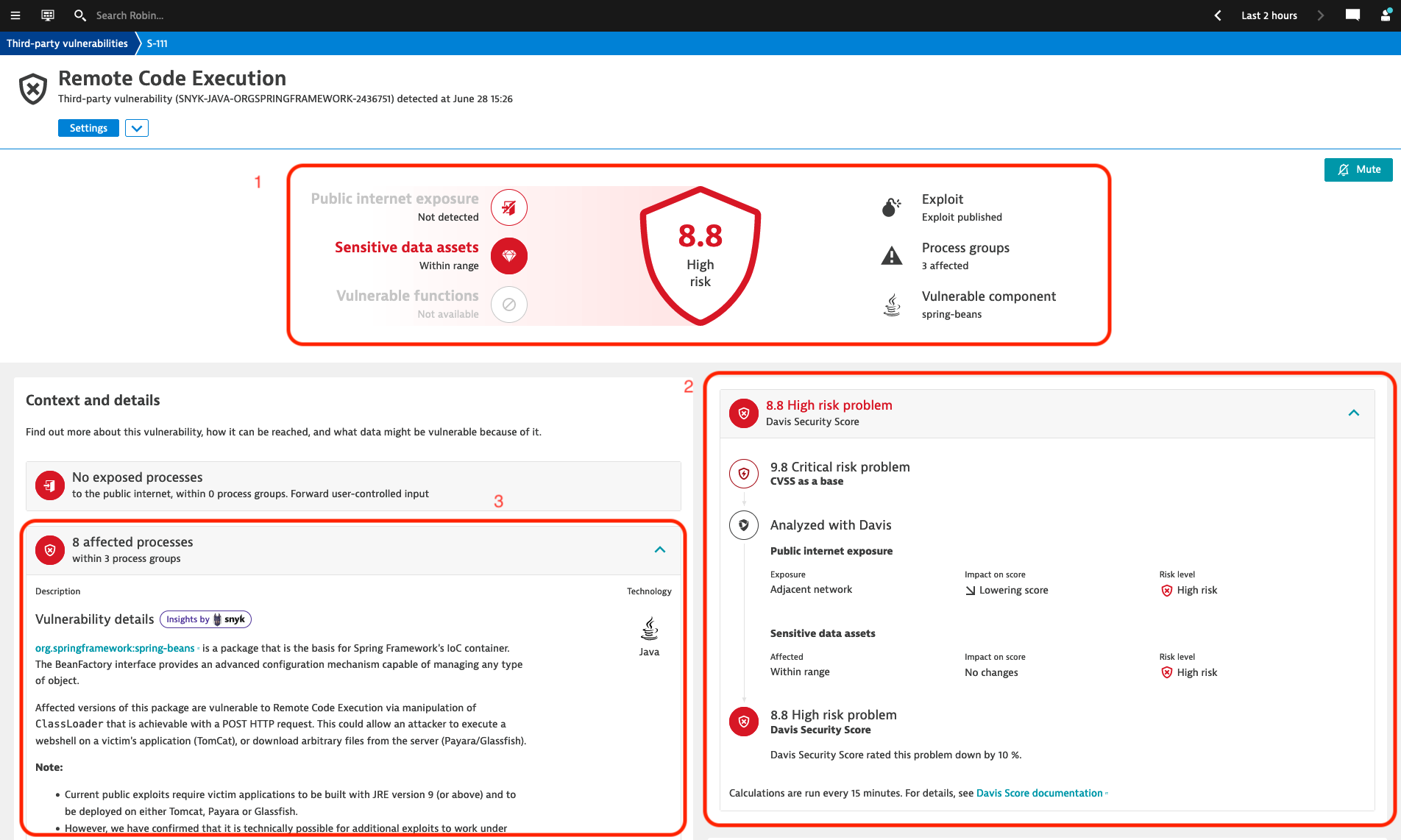

3. Here you can see all the details about this specific vulnerability:
   1. At the top you can see the context information, it shows that no public internet exposure was detected, meaning that all requests to the affected processes are from the local network. However, the Sensitive data assets indicates that the there is a access to a database from at least one of the processes, meaning that some data could be at risk. Meanwhile on the right side, it is indicated that there is a public exploit available for this vulnerability, making it easier for potential attackers to exploit the vulnerability.
   2. Here you can see how the Davis Security Score was calculated. Its original CVSS is a 9.8, but now that Davis has factored in the contextual information, it has been lowered to 8.8. This is because, although reachability to Sensitive Data has been identified, there is no Public Internet Exposure as all requests come from Adjacent networks. This helps you prioritize the different vulnerabilities.
   3. Under context and details you can see that there are 8 processes in 3 process groups that are affected by the vulnerabily. A description of the vulnerability is also provides, for example it mentions that the current known exploits affect applications deployed on Tomcat, Payara or Glassfish using Java 9 or higher. Links to other resources, such as the National Vulnerability Database, OWASP and Snyk are also provided for further research.

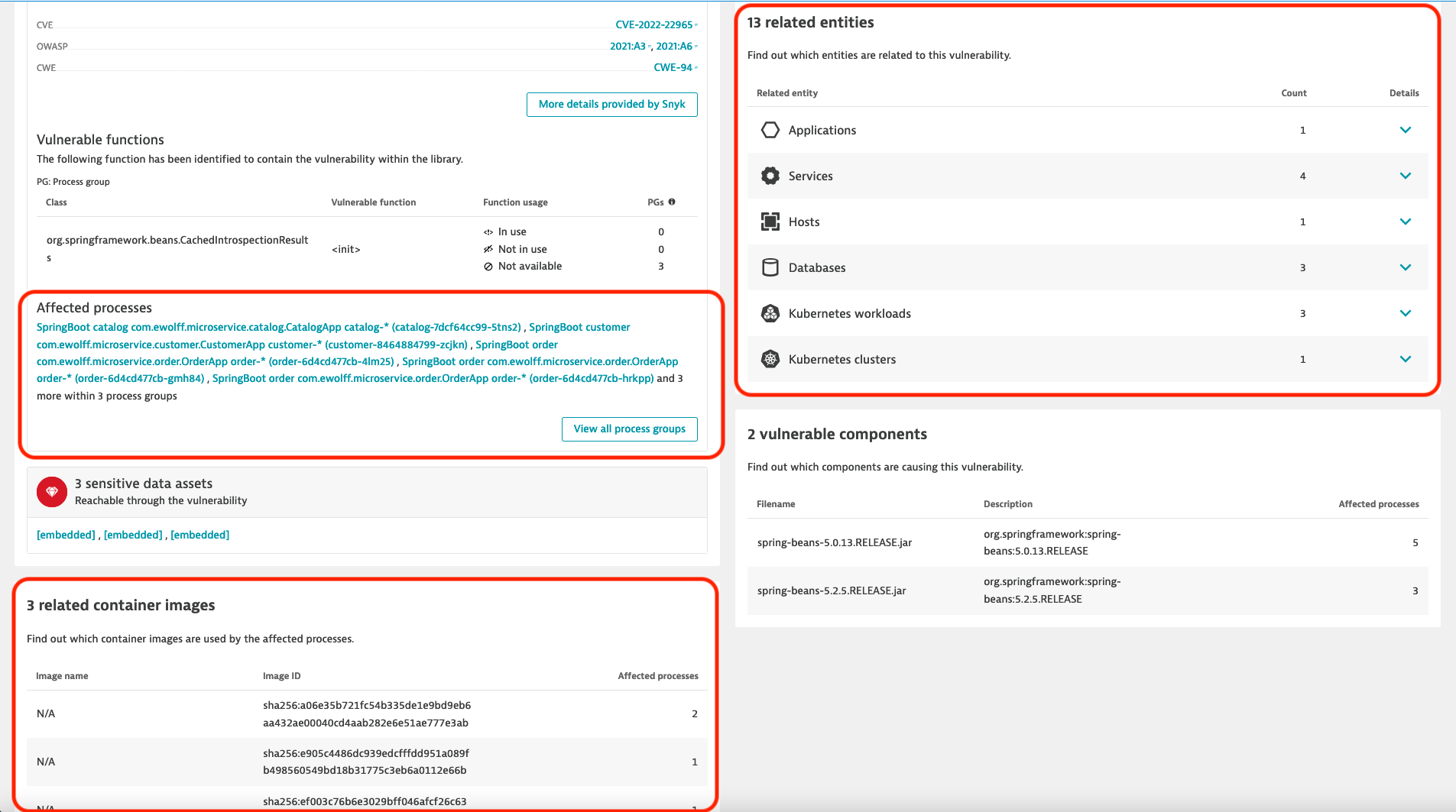

4. By scrolling further down, you can see additional context informaion, like all affected processes, the affected container images and other related entities.

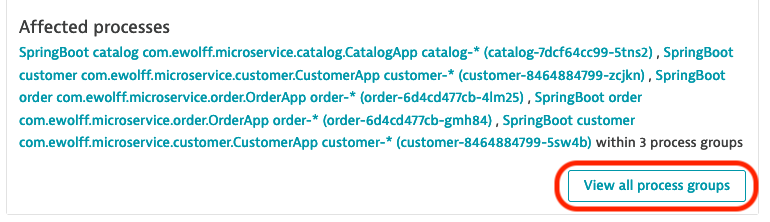

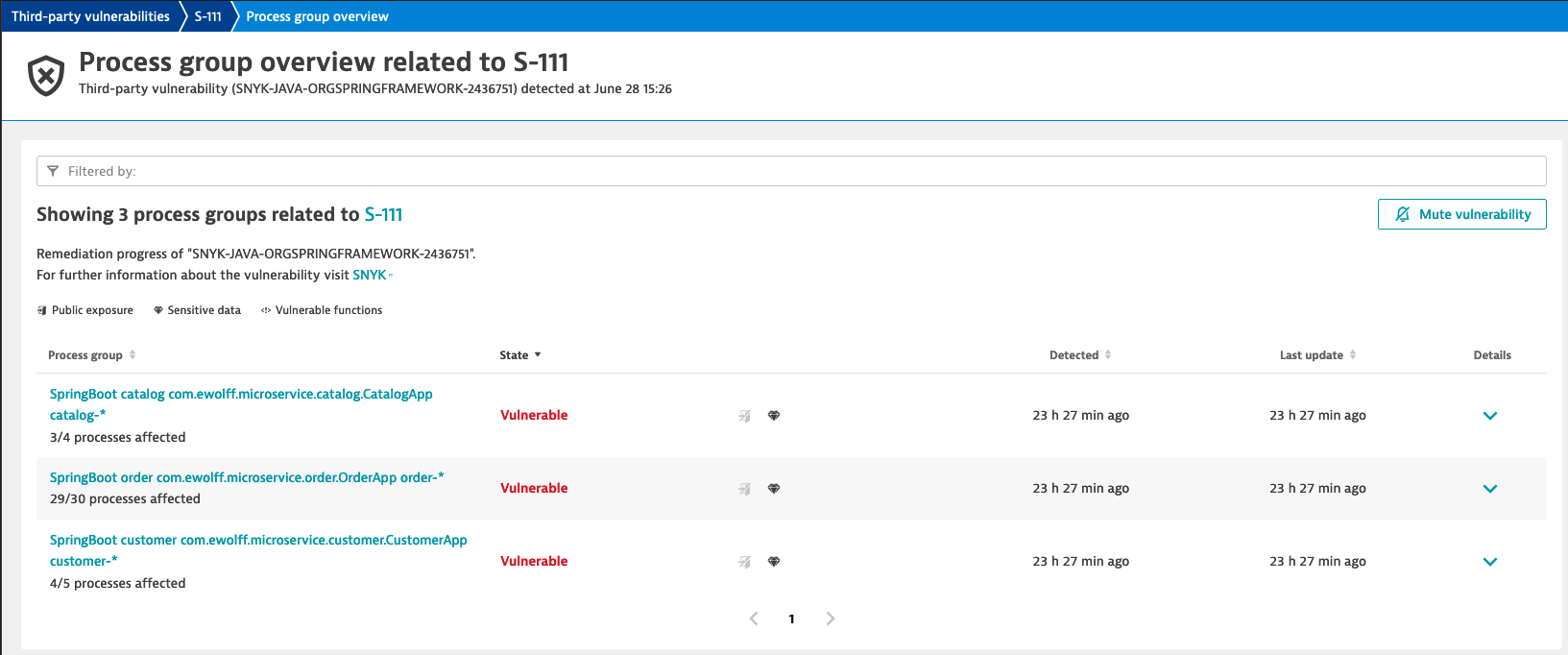

   • Click on View all process groups.
   • This shows the list of all affected Process Groups. As we saw in the detail information about the vulnerability, currently the exploits are only known to work with Java 9 or newer and applications deployed in Tomcat, Payara or Glassfish. Since Dynatrace collects all these information at runtime, it is quite easy to see if the Process Groups match these criteria.

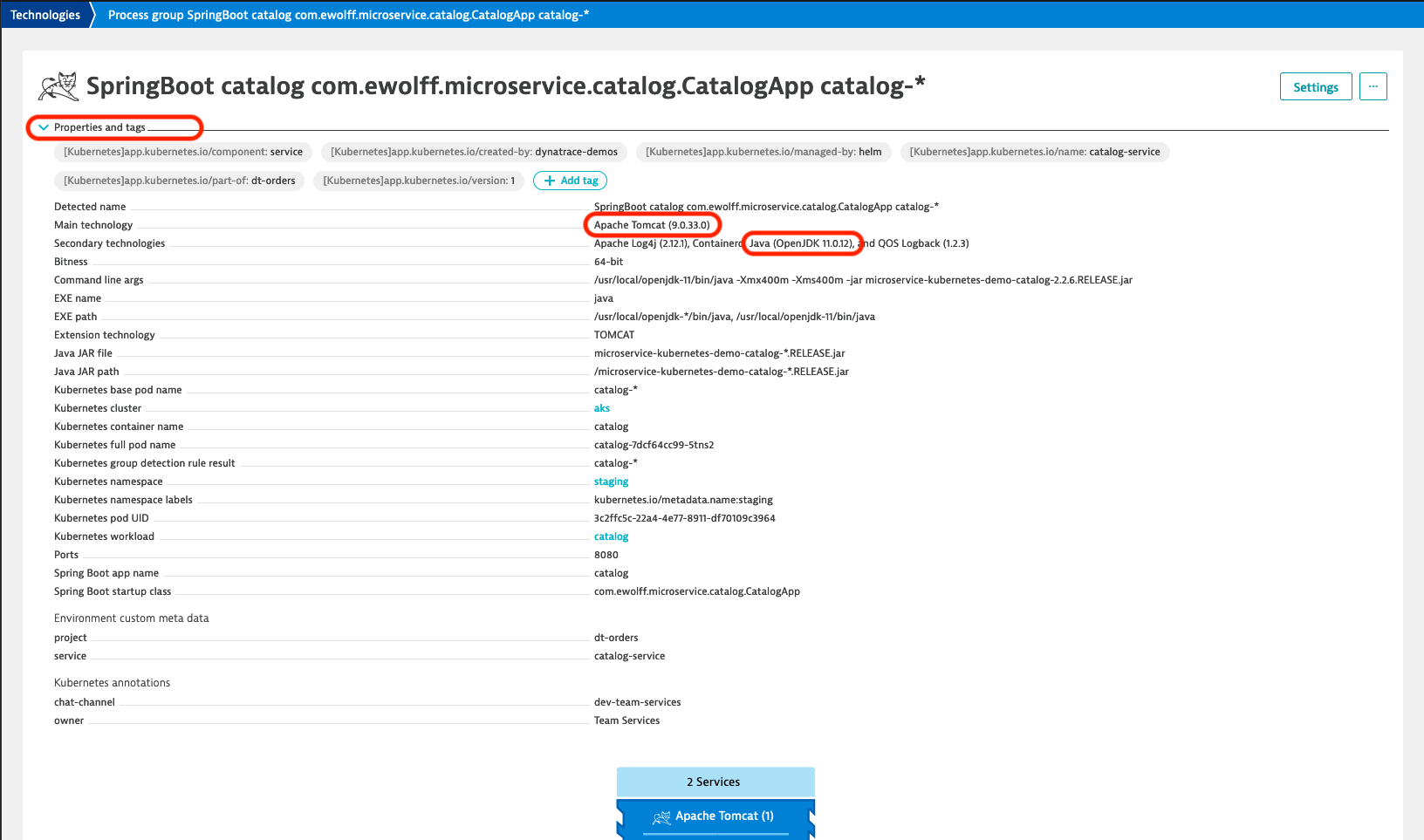

   • First, click on the first Process Group to see the Process Group Details and expand the Properties and Tags section.
   • As you can see in the properties, the application is deployed on Tomcat and is running on Java 11, meaning that it is affected by the spring4shell vulnerability.

In order to get alerted in case new vulnerability is discovered in our environment, we can setup security notifications. There are currently three notification types:

• Email: sends a email to a predefined address
• Jira: opens a new Jira Issue
• Custom integration (Webhook): sends a webrequest with a payload to an end-point.

Two steps are required to setup notifications. First we need to create a Security Profile, which defines in which cases a notifications is sent out. Then we can setup a Security Notification that sends out a notification for the previously created Security Profile.

Tasks to complete this step

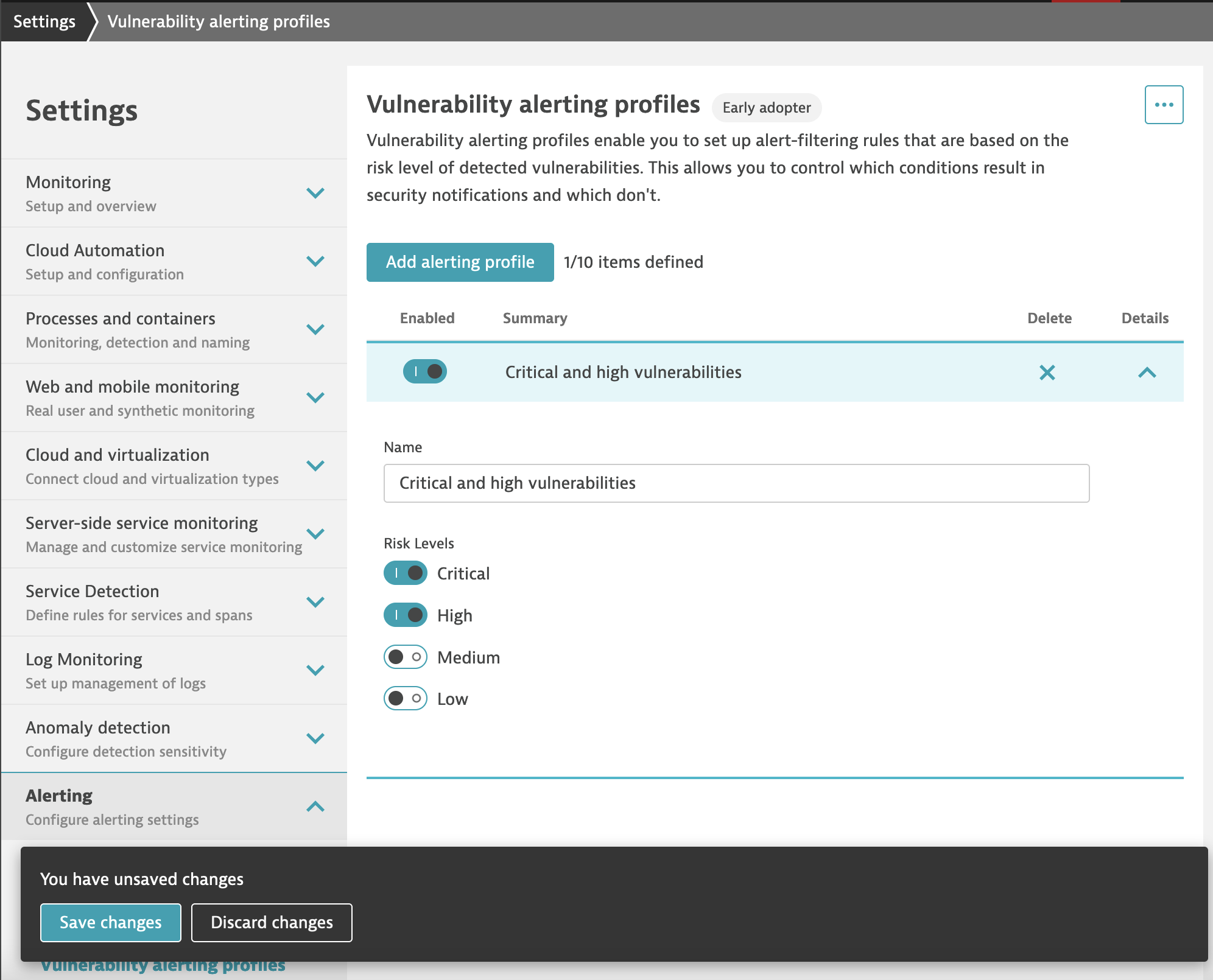

• The first step is to create a Vulnerability Alerting Profile
  • Go to Settings > Alerting > Vulnerability alerting profiles
  • Click on Add alerting profile
  • Specify a name, e.g. Critical and high vulnerabilities
  • Toggle the Critical and High Risk Levels
  • Click on Save changes
• After that we can setup the notification for the profile we just created
  • Go to Settings > Integration > Security notifications
  • Click on **Add integration##
  • Under Security alert type select Vulnerability alert
  • For the Notification type we are going to use Email
  • Display name: Email for critical and high vulnerabilities.
  • Under To click on Add recipient and enter your email address
  • The Subject and Body fields allow us to define the information in the email.
    • You can for example add the severity in to the subject: [{Severity}] Security problem {SecurityProblemId}: {Title}
  • The last step is to select the alerting profiles, where you can select the previously created profile

From now on, you will receive notifications whenever a new vulnerability with a risk score of critical or high is discovered.

Without any additional deployment or configuration required, Dynatrace can provide you a real-time view of the vulnerabilities present in your running applications. This helps you:

• Immediately get notified about vulnerabilities impacting your production environment
• Understand the potential impact
• Prioritize the vulnerabilities thanks to the context information
• Reduce false-positives, since it focuses on libraries that are effectively used

In this section, you should have completed the following:

✅ Enabled Runtime vulnerability analytics in just one click

✅ Review the vulnerabilities that were detected automatically by Dynatrace

✅ Use context information to prioritize the vulnerabilities

✅ Setup notifications to receive an email upon discovery of new vulnerabilities
